Operation and state indication display charge state by color in touch panel clearly.
We can easily put on and take off just to push button. We will tell about wearing by sound and color indication.
Sumitomo Electric Industries: Connector
It supports the certification network service, energy gate (eco-Q train).
※Please consult about correspondence to other charging systems.
Energy gate (eco-Q train)
We are based on CHAdeMO standard.
We can charge electric car of the companies.
CHAdeMO meeting
Village city of Fukutsu-shi apricot
Island city colored leaves shining beautifully pavilion
nishitetsu strike that Gannett Fukutsu
Kitakyushu-shi new appearance light service station
We can do it because it is KYUHEN of maker! We offer quick-charger by one stop
We suggest by total from do ⼊ plan to design, construction, maintenance.
We do explanation such as specifications of product, necessity or not of fixed construction.
We are going to install and confirm place and, for term of works, do meetings such as expense, setting image.
When various application is necessary, we help.
We can construct with customer and start construction of period after having made arrangements.
It is product having you use for a long time. As we cope quickly as manufacturer, at the time of request, don't worry.

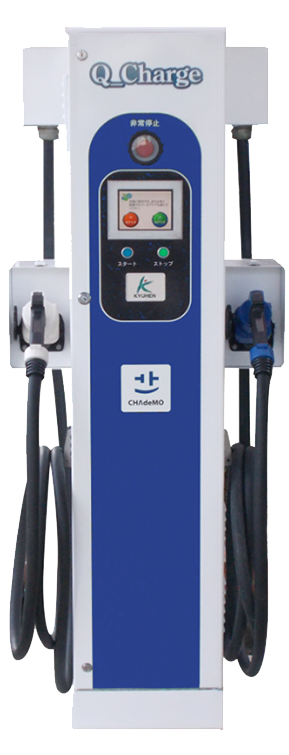

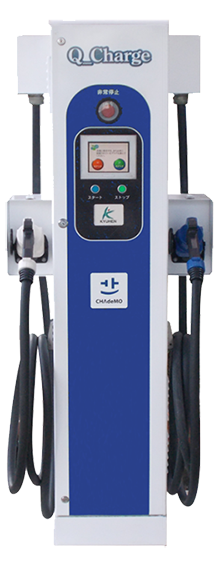

| Model | QC30S (1 plug type) |
QC30D (2 plugs type) |
|---|---|---|
| Model | 30kW | 30kW |

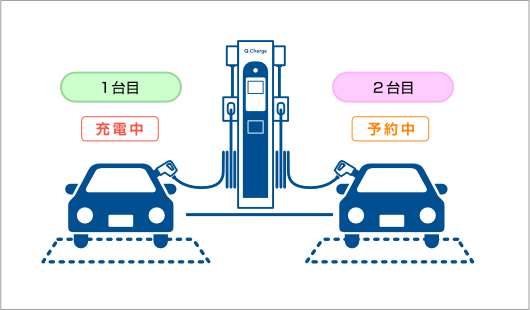

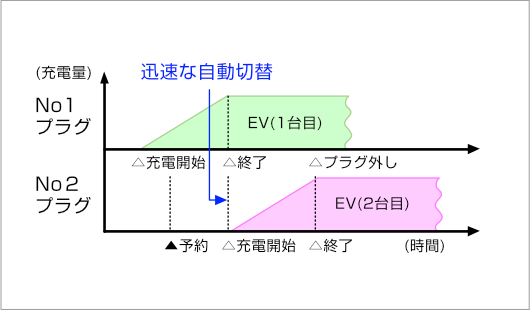

| Plug | 1 plug | 2 plugs (sily charge) |
| The rating input voltage | Ministry of three 3 line-style AC200V (+-15%), 50/60 Hz | |
| Power factor | 0.95 The above | |
| The output voltage | DC 50-500V | |
| The output electric current | DC 0-75 A | |
| Protection structure | IP33 equivalency | |
| Use place | Indoor outside, 1,000m above sea level or less | |
| Ambient temperature/humidity | -10 degrees Celsius - 40 degrees Celsius/- 90% | |
| Efficiency | 91.7% | |
| External form dimensions | 1,670mm in height 350mm in width 450mm in depth | |
| Weight | 170 kg※ | 195 kg※ |
| Standard | CHAdeMO Ver.0.9.1 | |
※ Weight to include cable 6m
